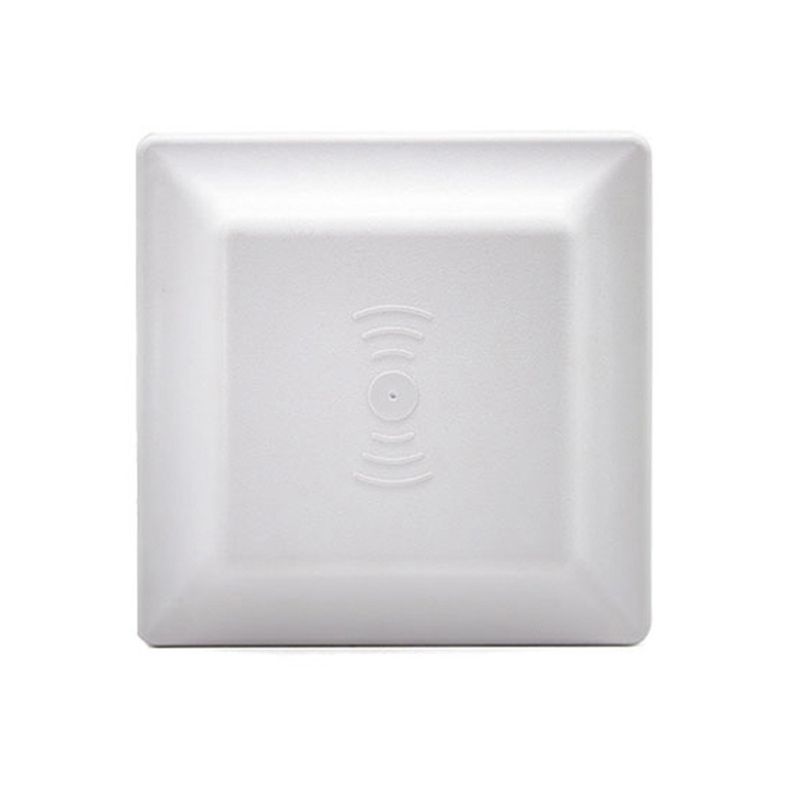

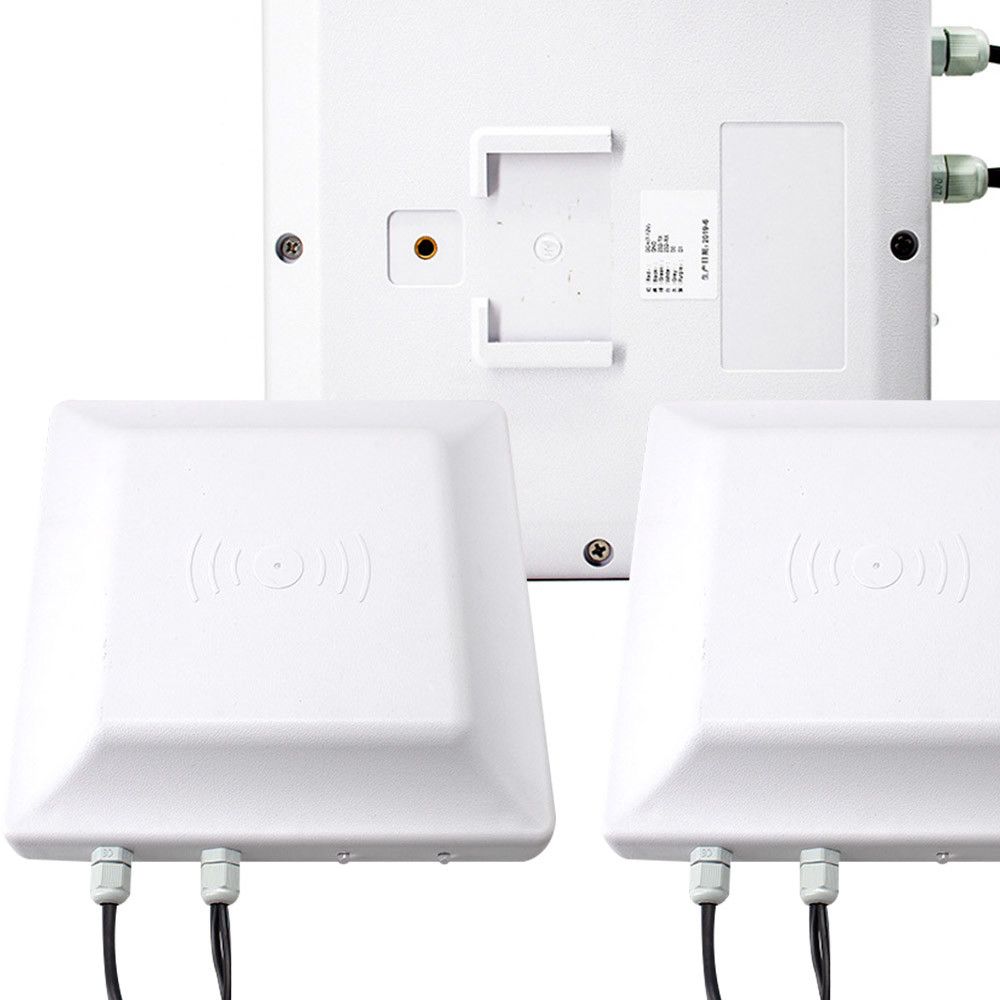

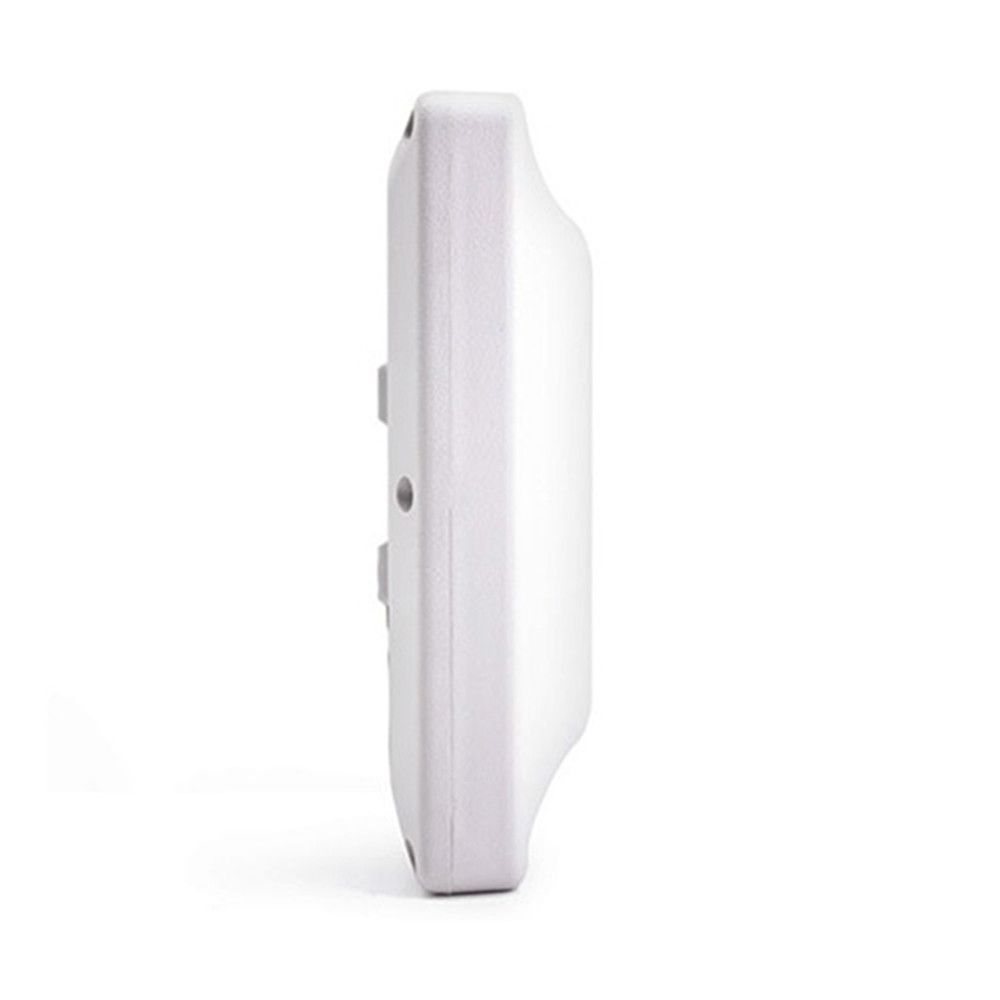

MAXIMA UHF RFID READER 5M TM-805 SHORT RANGE
SKU: FINT022
Short-range waterproof UHF RFID reader for vehicle and pedestrian access, reading passive tags at up to 5m.
No online prices. We come back with a sharp quote, fast.
Description
The Maxima TM-805 is an integrated short-range UHF reader for vehicle gates and parking, reading passive tags and cards at up to 5 metres through its built-in 7dBi circular antenna. RF power is software programmable from 0 to 30dBm, so installers can tune the read range to the lane. It reads ISO18000-6B and ISO18000-6C (EPC GEN2) tags, identifying a single tag up to 140 times per second, with frequency hopping for interference resistance. Outputs cover Wiegand 26/34/98, RS485, RS232 and USB, with TCP/IP on the E version, and a buzzer confirms reads. The weatherproof housing works from -20°C to +70°C.
Specifications
- Model
- TM-805
- Reading distance
- 0 to 5m
- Card frequency
- 865-868MHz and 902-928MHz UHF
- Communication
- Wiegand 26/34/98, RS485, RS232, USB (TCP/IP on E version)
- Antenna
- 7dBi circular
- RF power
- 0 to 30dBm, software programmable
- Operating voltage
- 9V DC
- Operating temperature
- -20°C to +70°C
- Dimensions
- 215 x 215 x 50mm
- Weight
- 0.8kg
