Maxima SA

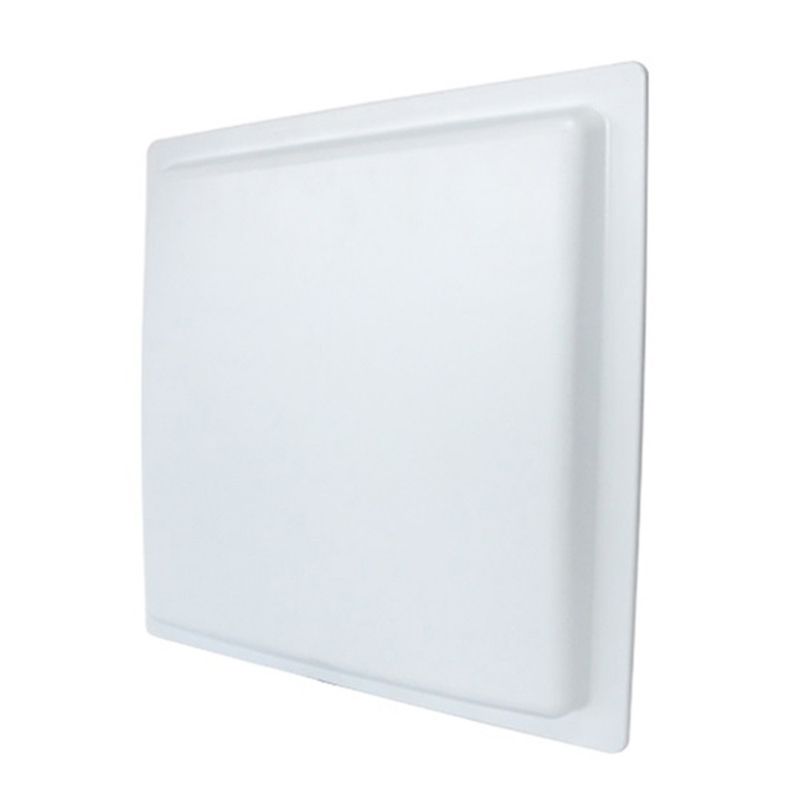

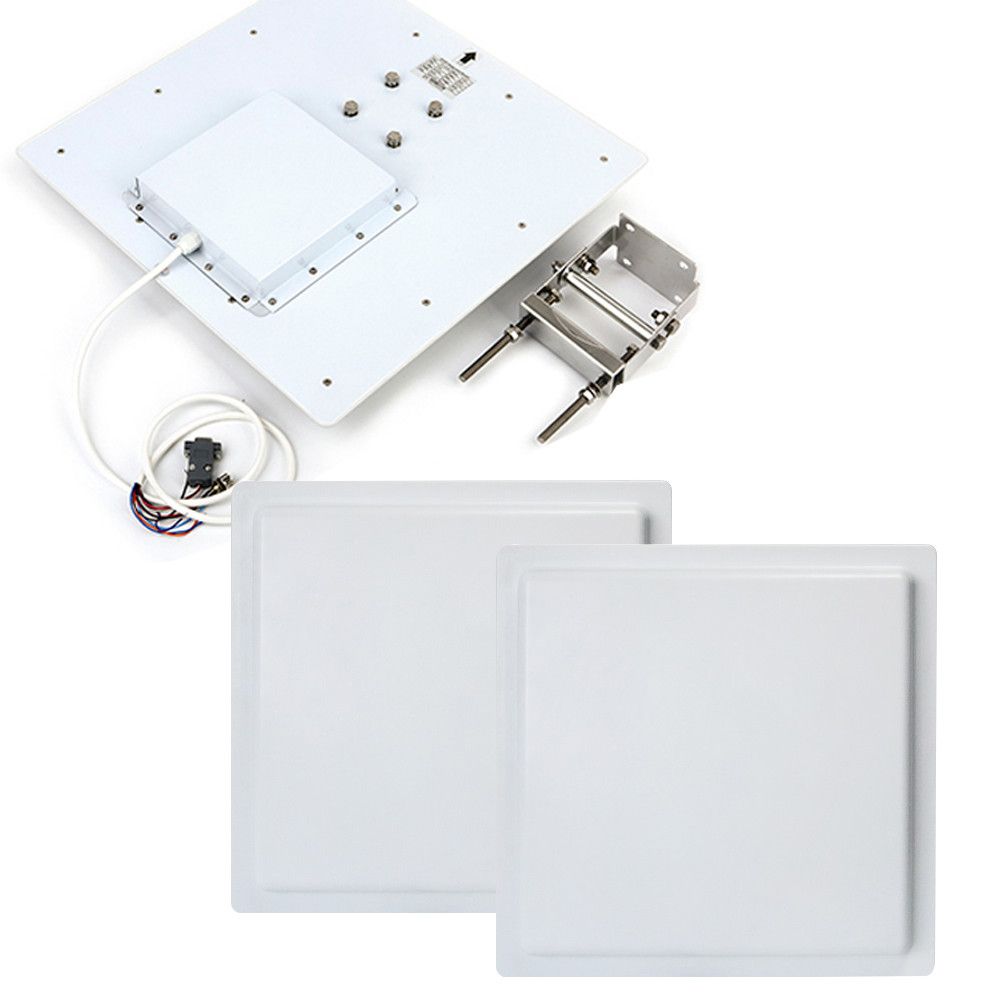

MAXIMA UHF RFID READER 20M TM-820 LONG RANGE
SKU: FINT023
Long-range waterproof UHF RFID reader for vehicle access, reading passive tags at 20m and beyond.
No online prices. We come back with a sharp quote, fast.
Description
The Maxima TM-820 is an integrated long-range UHF reader for boom gates, estates and logistics yards, reading passive tags at over 20 metres, and up to 35 metres in high power mode, through its built-in 10dBi circular antenna. RF power is software programmable from 0 to 30dBm so the read zone can be tuned per lane. It reads ISO18000-6B and ISO18000-6C (EPC GEN2) tags with frequency hopping for stable performance near other equipment. Outputs cover Wiegand 26/34/98, RS485, RS232 and USB, with TCP/IP on the E version. The weatherproof panel measures 445 x 445 x 35mm and operates from -20°C to +70°C.
Specifications
- Model
- TM-820
- Reading distance
- Over 20m (up to 35m in high power mode)
- Card frequency
- 865-868MHz and 902-928MHz UHF
- Communication
- Wiegand 26/34/98, RS485, RS232, USB (TCP/IP on E version)
- Antenna
- 10dBi circular
- RF power
- 0 to 30dBm, software programmable
- Operating voltage
- 9V DC
- Operating temperature
- -20°C to +70°C
- Dimensions
- 445 x 445 x 35mm
- Weight
- 2.55kg
