Locks
MAXIMA BRACKET 180KG INDOOR ZLB-180
SKU BRAMMI2
Indoor ZL mounting bracket for the Maxima NE-180 electromagnetic lock (180kg). Lets the lock be fitted to in-swing single doors with a frame.
Maxima SA

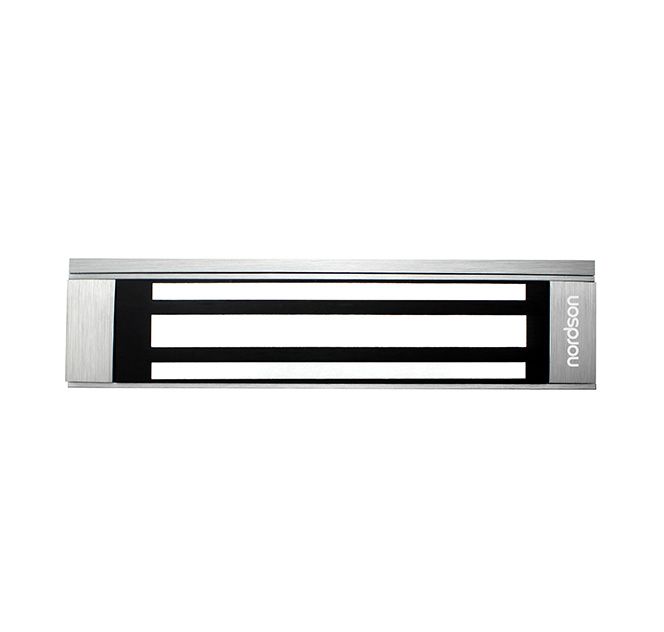

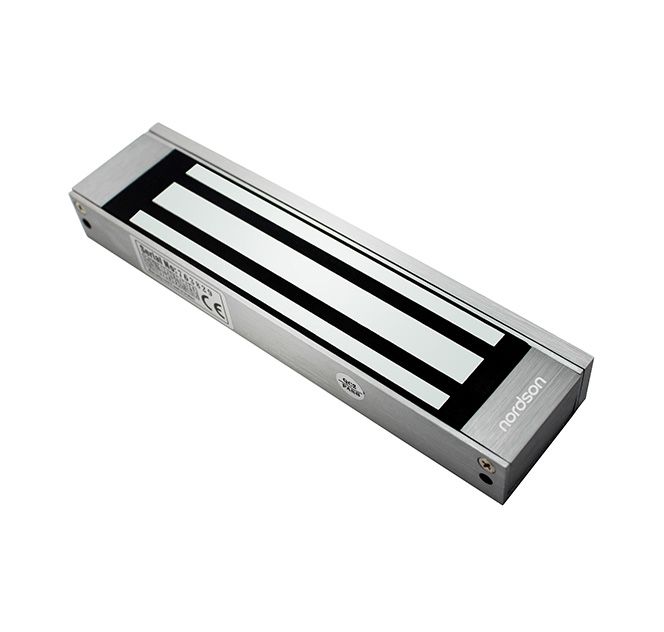

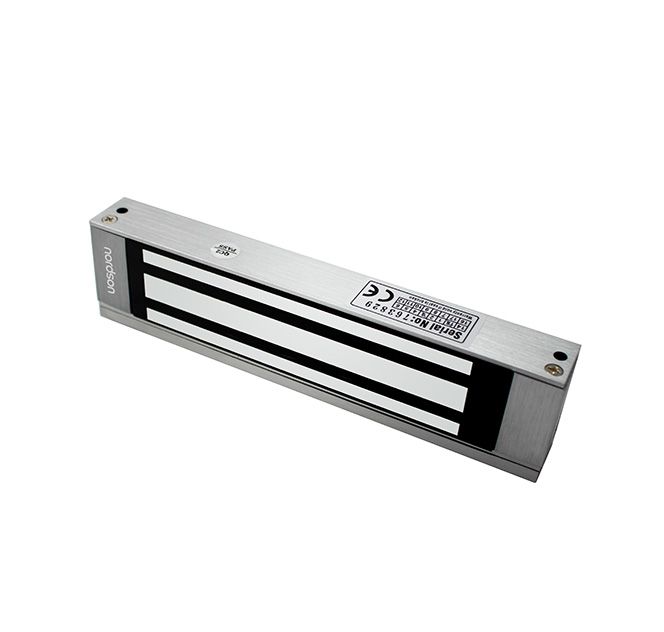

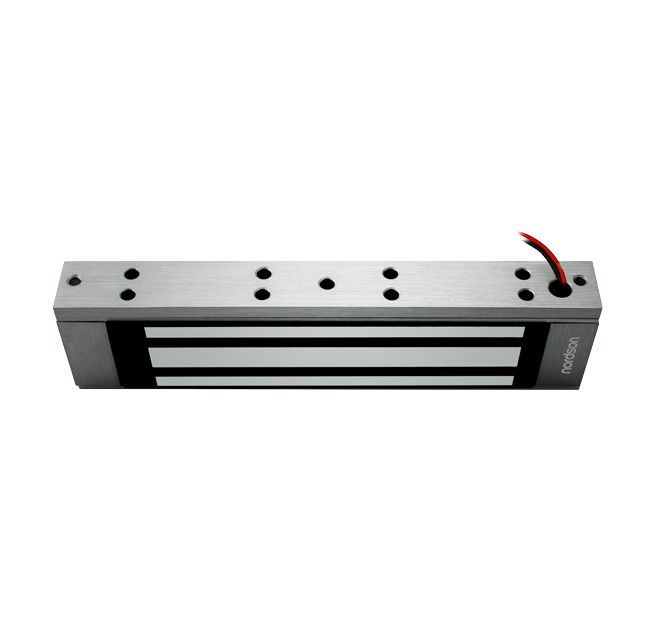

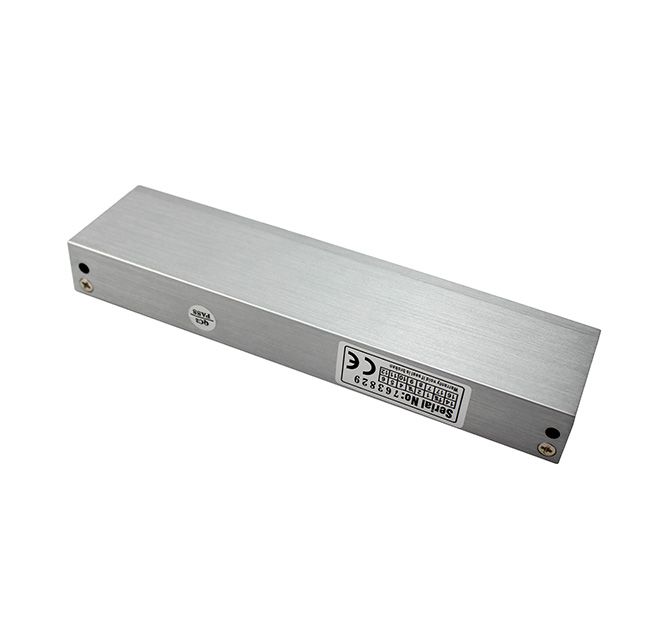

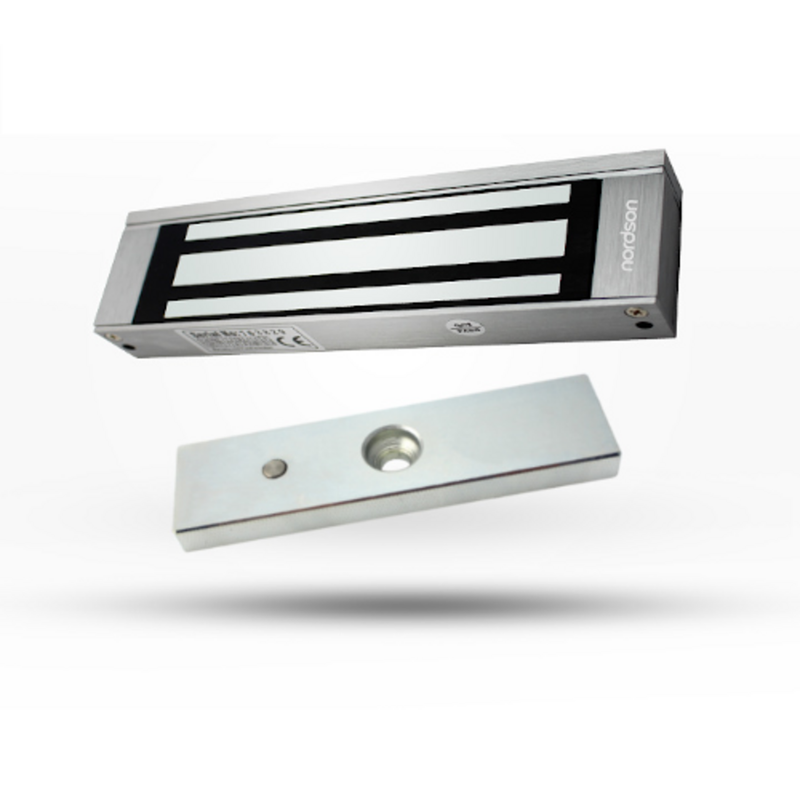

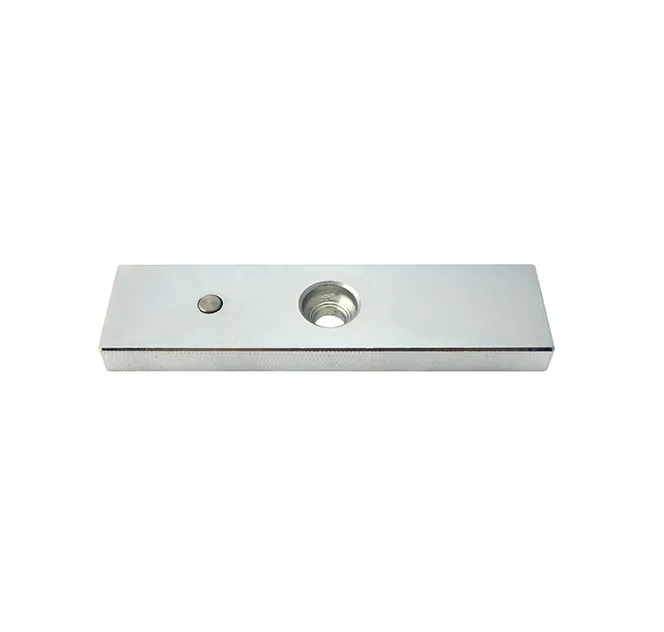

MAXIMA LOCK E/MAG 180KG INDOOR NE-180
SKU: LOCMI4
Compact 180kg indoor electromagnetic lock for single doors with a frame. Fail-safe operation with a red LED status indicator.
No online prices. We come back with a sharp quote, fast.
Description
The Maxima NE-180 is a compact indoor electromagnetic lock with a 180kg holding force, well suited to offices, server rooms and interior access control. It fits wooden, aluminium, glass, metal and fireproof single doors with a frame, and runs on 12V DC at 500mA or 24V DC at 250mA. Like all maglocks it is fail-safe, releasing the moment power is cut, so it integrates cleanly with fire and emergency release circuits. A red LED shows lock status at the door. The zinc plated body measures 170 x 35 x 21mm with a matching armature plate. For in-swing doors, pair it with the ZLB-180 ZL bracket.
Specifications
- Model
- NE-180
- Holding force
- 180kg
- Operating voltage
- 12V DC or 24V DC
- Current draw
- 500mA at 12V, 250mA at 24V
- Suitable door types
- Wooden, aluminium, glass, metal and fireproof single doors with a frame
- Fail-safe or fail-secure
- Fail-safe (releases on power loss)
- Signal output
- Red LED status indicator
- Dimensions
- 170 x 35 x 21mm (lock body)
