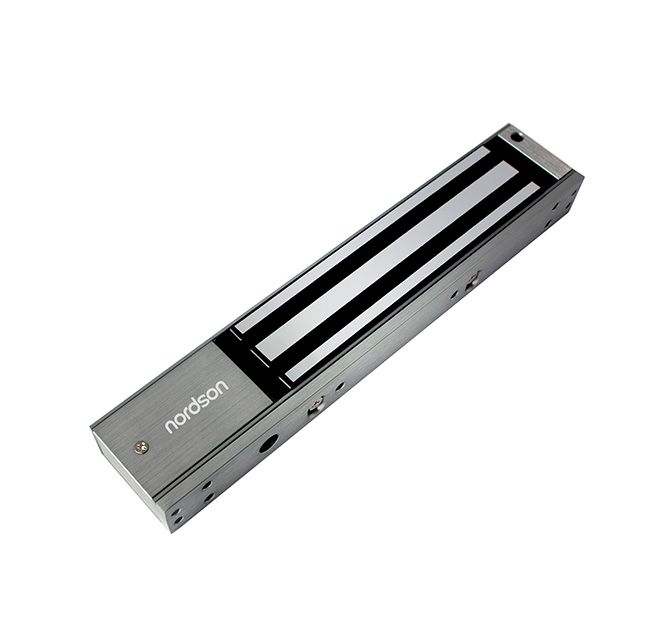

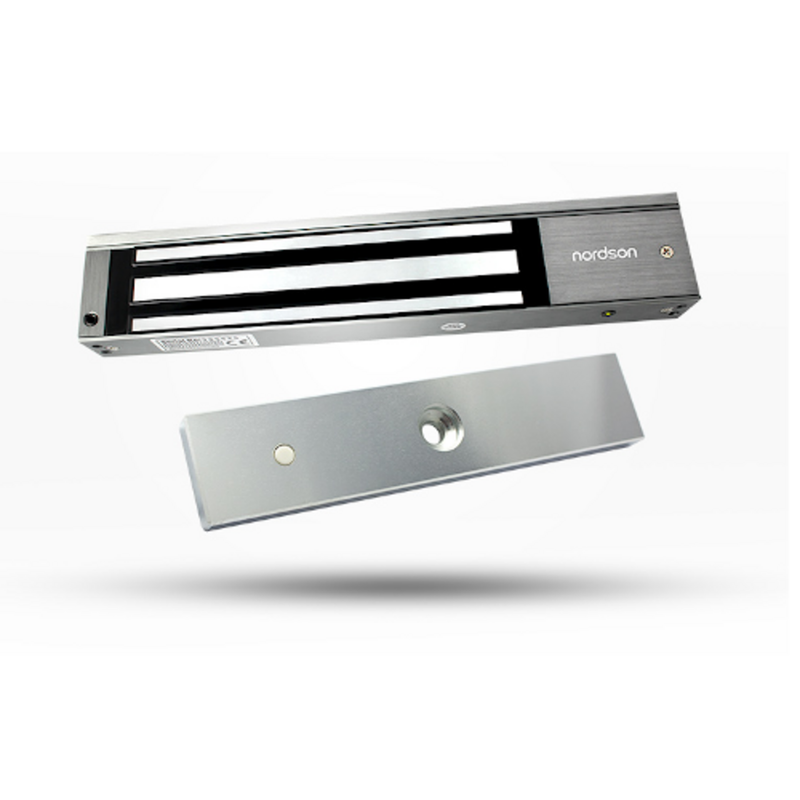

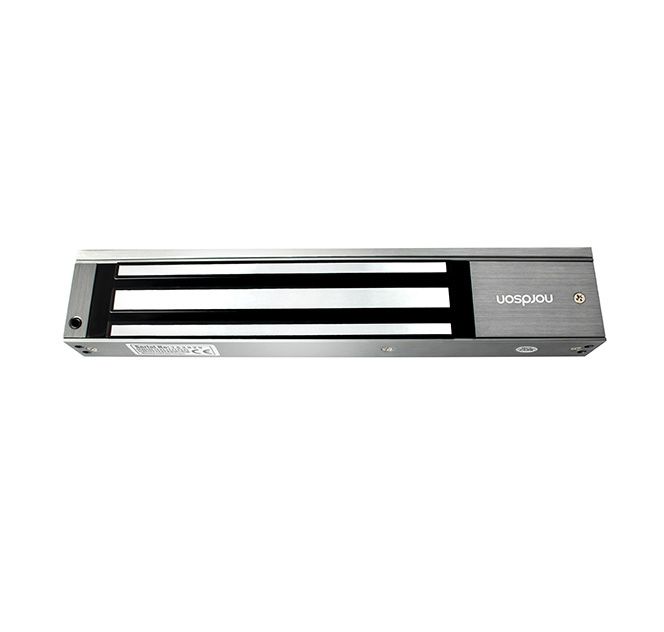

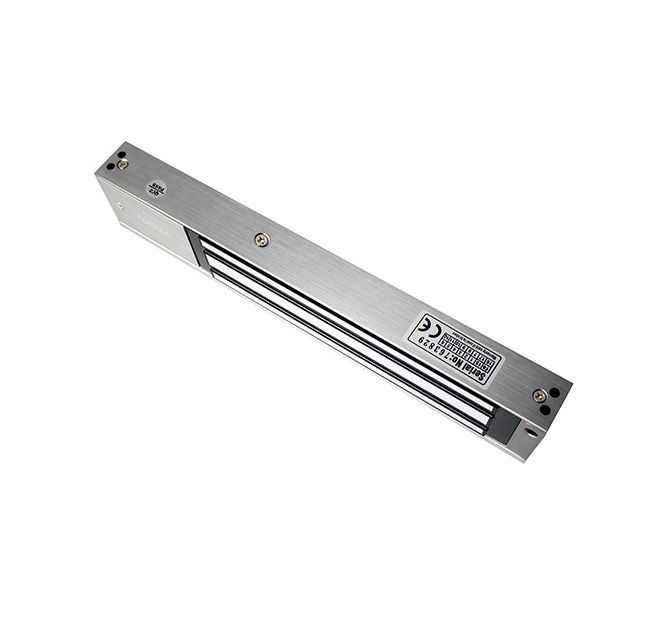

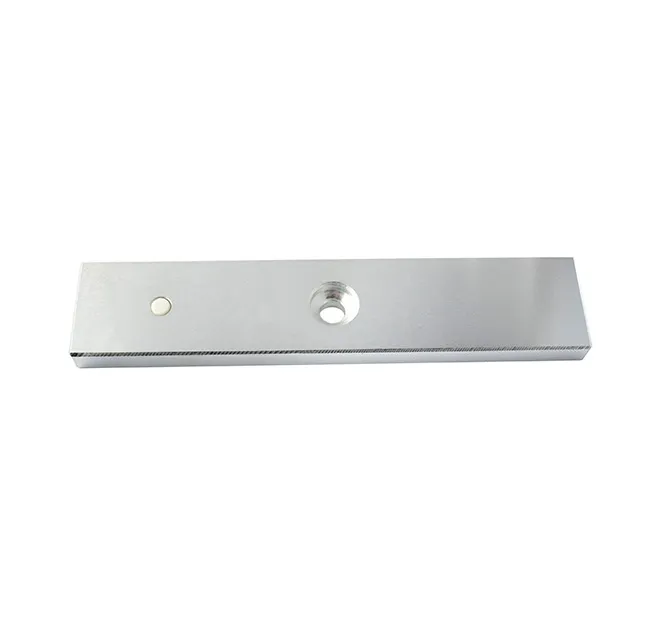

MAXIMA LOCK E/MAG 280KG INDOOR NE-280 LED
SKU: LOCMI6
280kg indoor electromagnetic lock for single doors with a frame. Fail-safe, with a red LED indicator and optional buzzer customisation.
No online prices. We come back with a sharp quote, fast.
Description
The Maxima NE-280 is a 280kg indoor electromagnetic lock, the workhorse size for standard interior access control doors. It fits wooden, aluminium, glass, metal and fireproof single doors with a frame, and runs on 12V DC at 500mA or 24V DC at 250mA. Being fail-safe, it releases immediately when power is cut, which suits fire and emergency release requirements. A red LED shows lock status, and buzzer customisation is available on request. The zinc plated body measures 250 x 48 x 25mm with a matching armature plate. For in-swing doors, pair it with the ZLB-280 ZL bracket.
Specifications
- Model
- NE-280
- Holding force
- 280kg
- Operating voltage
- 12V DC or 24V DC
- Current draw
- 500mA at 12V, 250mA at 24V
- Suitable door types
- Wooden, aluminium, glass, metal and fireproof single doors with a frame
- Fail-safe or fail-secure
- Fail-safe (releases on power loss)
- Signal output
- Red LED status indicator
- Dimensions
- 250 x 48 x 25mm (lock body)
