Locks
MAXIMA BRACKET 180KG INDOOR ZLB-180
SKU BRAMMI2
Indoor ZL mounting bracket for the Maxima NE-180 electromagnetic lock (180kg). Lets the lock be fitted to in-swing single doors with a frame.
Maxima SA

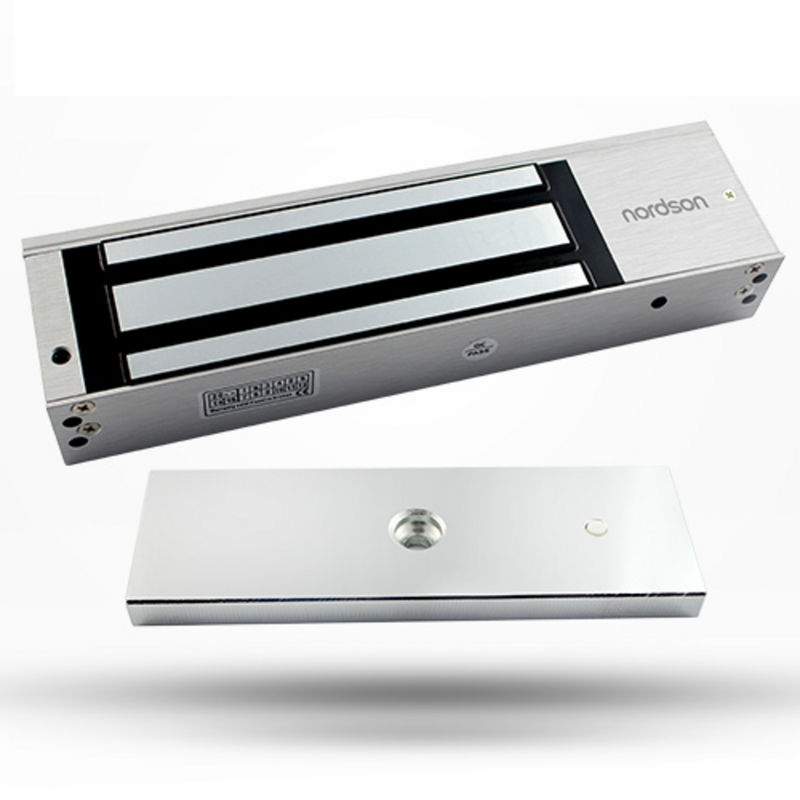

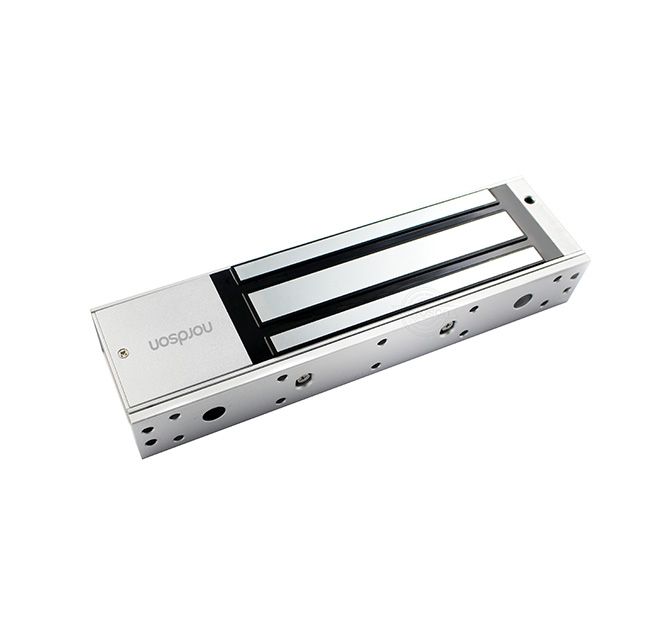

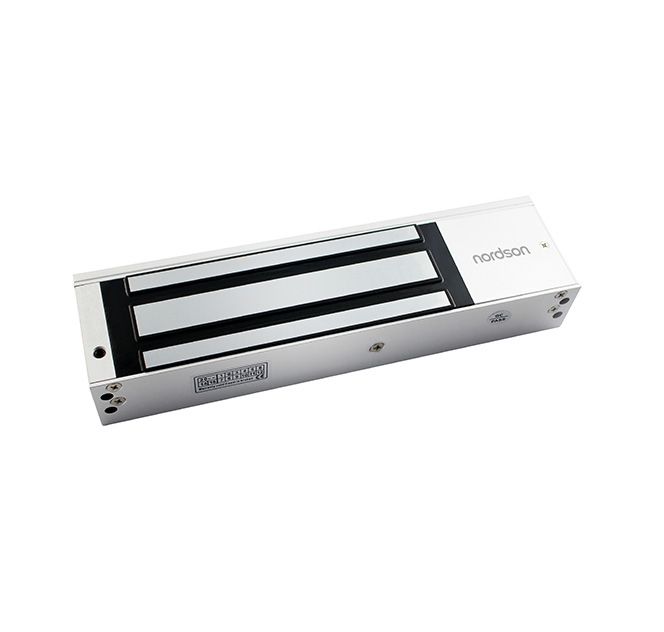

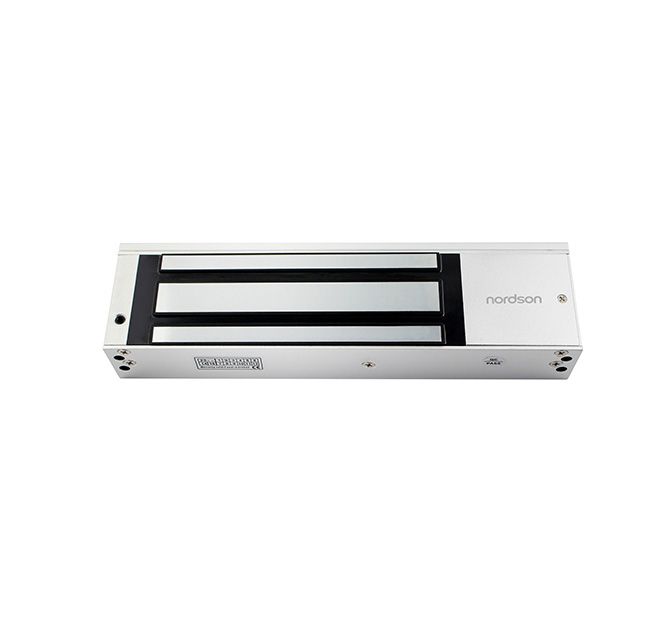

MAXIMA LOCK E/MAG 600KG INDOOR NE-600LED
SKU: LOCMI9
600kg indoor electromagnetic lock for high security single doors with a frame. Fail-safe, with a single red LED indicator.
No online prices. We come back with a sharp quote, fast.
Description
The Maxima NE-600LED is a 600kg indoor electromagnetic lock for doors that need serious holding force, such as strongrooms, control rooms and high value stock areas. It fits wooden, aluminium, glass, metal and fireproof single doors with a frame, and runs on 12V DC at 500mA or 24V DC at 250mA. As a fail-safe lock it releases the instant power is cut, keeping escape routes compliant. A single red LED shows lock status, and buzzer customisation is available. The zinc plated body measures 266 x 67 x 39mm. On in-swing doors, fit it with the ZLB-600 ZL bracket.
Specifications
- Model
- NE-600LED
- Holding force
- 600kg
- Operating voltage
- 12V DC or 24V DC
- Current draw
- 500mA at 12V, 250mA at 24V
- Suitable door types
- Wooden, aluminium, glass, metal and fireproof single doors with a frame
- Fail-safe or fail-secure
- Fail-safe (releases on power loss)
- Signal output
- Single red LED status indicator
- Dimensions
- 266 x 67 x 39mm (lock body)
