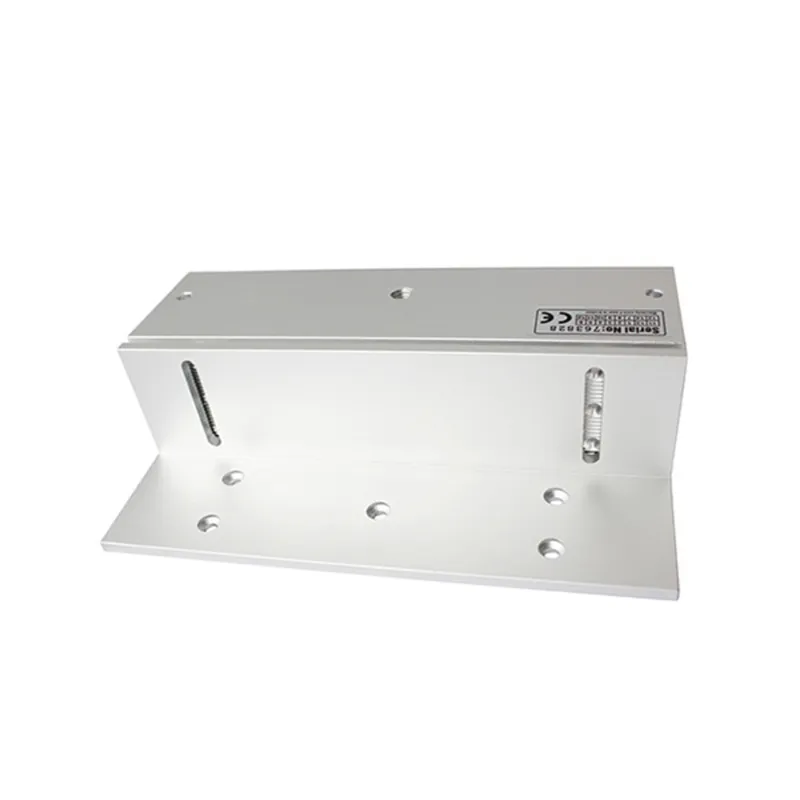

MAXIMA BRACKET 180KG INDOOR ZLB-180
SKU BRAMMI2
Indoor ZL mounting bracket for the Maxima NE-180 electromagnetic lock (180kg). Lets the lock be fitted to in-swing single doors with a frame.
Maxima SA

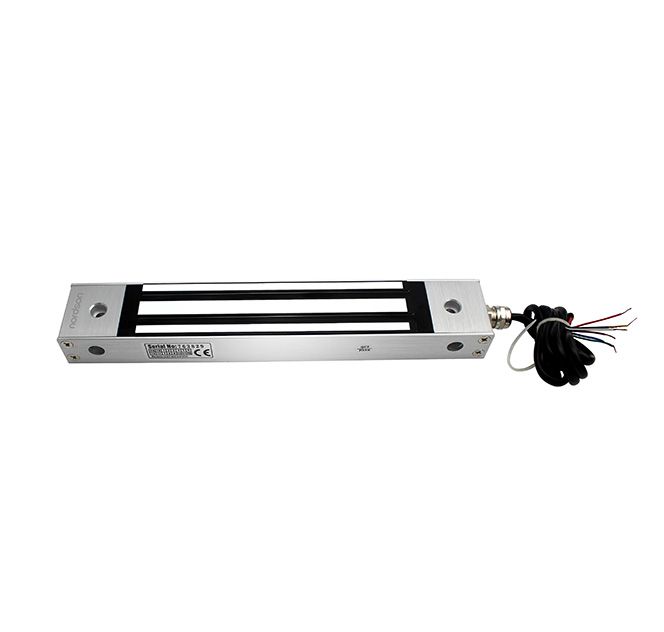

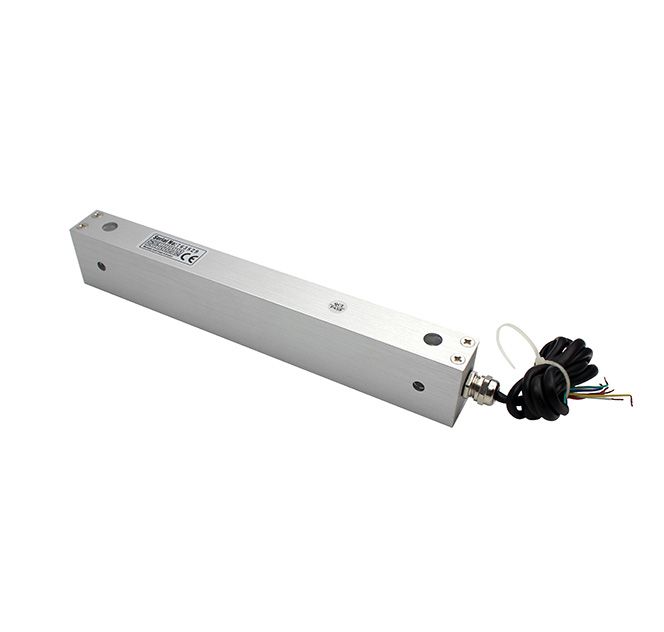

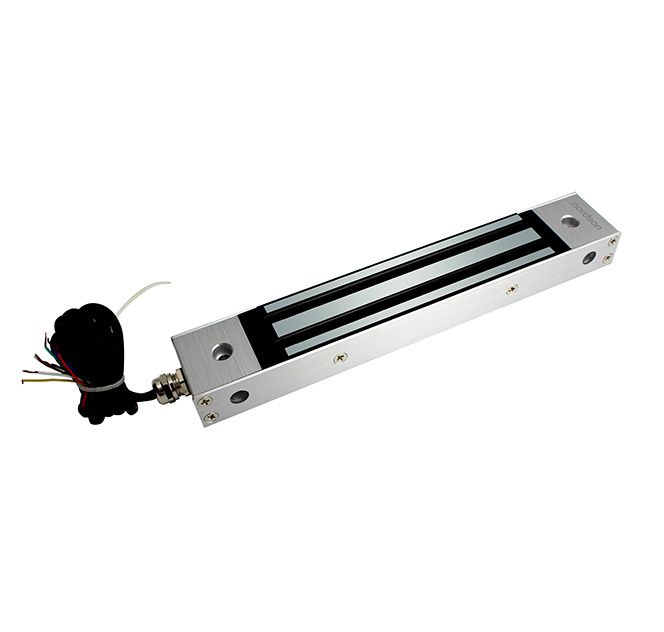

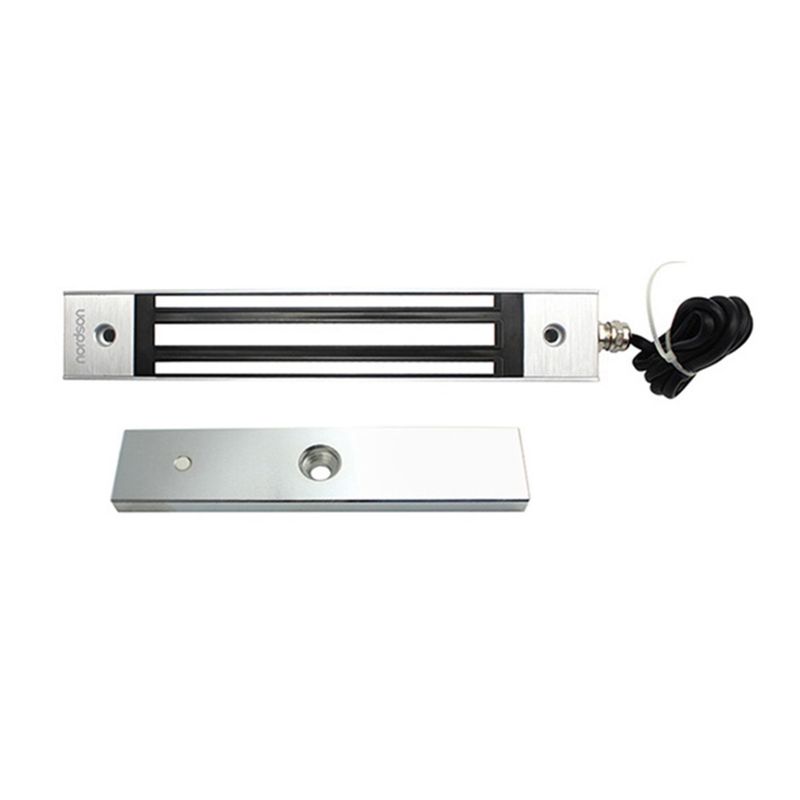

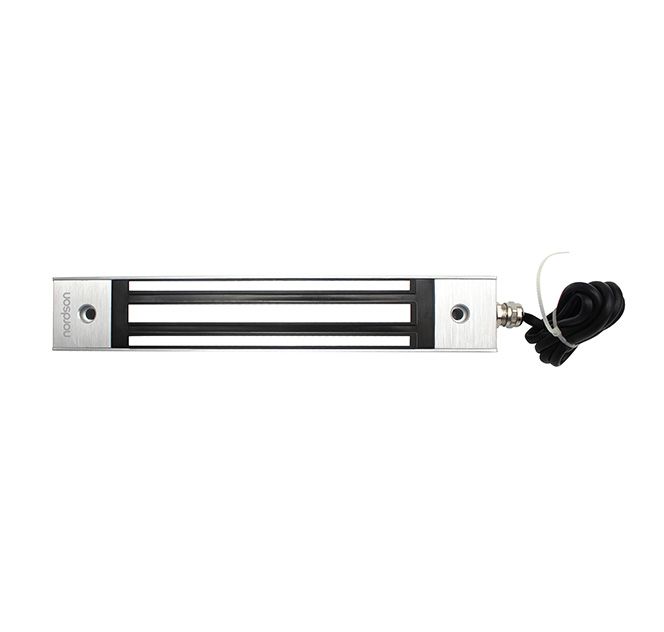

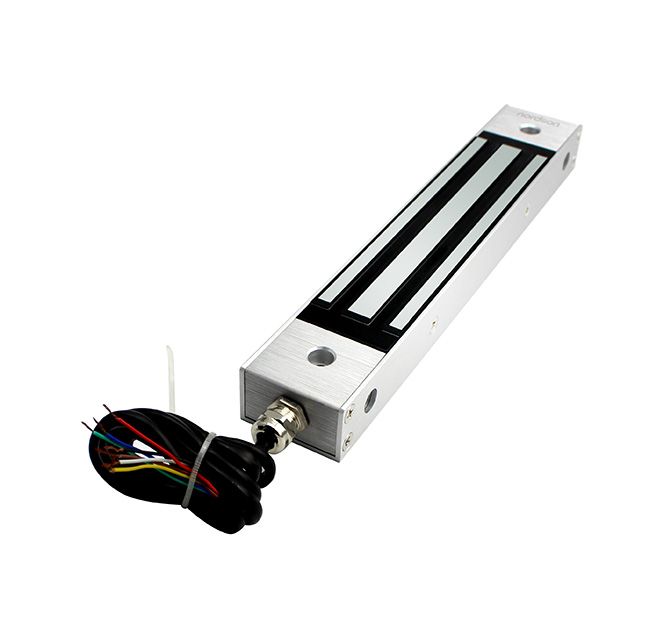

MAXIMA LOCK E/MAG 280KG OUTDOOR NE-280W
SKU: LOCMO2
280kg outdoor waterproof electromagnetic lock for single doors and gates with a frame. Fail-safe, with NO/NC/COM output and optional timer and buzzer.
No online prices. We come back with a sharp quote, fast.
Description
The Maxima NE-280W is a 280kg outdoor electromagnetic lock for gates, perimeter doors and exposed entrances. It fits all types of single doors with a frame and runs on 12V DC at 500mA or 24V DC at 250mA. As a fail-safe lock it releases immediately when power is cut, keeping emergency egress simple. NO/NC/COM outputs feed lock status to the access control panel, and timer and buzzer customisation is available on request. For in-swing outdoor doors and gates, fit it with the matching ZLB-280W outdoor ZL bracket to keep the magnet and armature plate aligned.
Specifications
- Model
- NE-280W
- Holding force
- 280kg
- Operating voltage
- 12V DC or 24V DC
- Current draw
- 500mA at 12V, 250mA at 24V
- Suitable door types
- Single doors with a frame
- Fail-safe or fail-secure
- Fail-safe (releases on power loss)
- Signal output
- NO/NC/COM lock status output
- Environment
- Outdoor use
